Introduction

The HiPure Mini system provides a fast, simple, and cost-effective plasmid DNA miniprep method for routine molecular biology laboratory applications. HiPure Plasmid Mini Kits use silica membrane technology to eliminate the cumbersome steps associated with loose resins or slurries. Plasmid DNA purified with Mini Kits is immediately ready for use. Phenol extraction and ethanol precipitation are not required, and high quality plasmid DNA is eluted in a small volume of Tris buffer or water.

Details

Specifications

Features	Specifications
Main Functions	Isolation up to 70μg plasmid DNA from 5-15ml bacterial culture
Applications	Enzyme digestion, sequencing, PCR, cloning, etc.
Purification method	Mini spin column
Purification technology	Silica technology
Process method	Manual (centrifugation or vacuum)
Sample type	Conventional plasmid, plasmid less than 30KB
Sample amount	High copy plasmid: 1-5ml culture medium Low copy plasmid : 5-10ml culture medium
Yield	20-80µg
Elution volume	≥75μl
Time per run	Complete 1-24 samples in 30 minutes
Liquid carrying volume per column	800µl
Binding yield of column	70µg

Principle

The HiPure Plasmid procedure is based on alkaline lysis of bacterial cells followed by adsorption of DNA onto silica in the presence of high salt. The unique silica membrane used in the kit completely replaces glass or silica slurries for plasmid DNA minipreps. The procedure consists of 3 basic steps: Preparation and clearing of a bacterial lysate by alkaline method，then transfer the supernatant to column to bind DNA. After washing proteins and other impurities, nucleic acid was finally eluted with low-salt buffer (10mm Tris, pH9.0, 0.5mm EDTA).

Advantages

High purity - purified plasmid can be directly used in sequencing, enzyme digestion and PCR, etc.
Fast - it takes only 2 minutes to obtain supernatant by optimized solution (10 minutes for other brands)
High yield - up to 70µg plasmid can be binded in one column

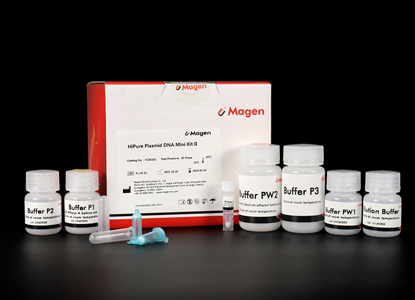

Kit Contents

Contents	P100202	P100203
Purification Times	50 Preps	250 Preps
RNase A	5 mg	20 mg
Buffer P1	30 ml	140 ml
Buffer P2	30 ml	140 ml
Buffer P3	40 ml	200 ml
Buffer PW1	30 ml	140 ml
Buffer PW2*	12 ml	50 ml
Elution Buffer	15 ml	30 ml
HiPure DNA Mini Columns III	50	250 ml
2 ml Collection Tubes	50	250 ml

Storage and Stability

The kit components can be stored dry at room temperature (15-25°C) and are stable for at least 18 months under these conditions. If any precipitates form in the buffers, warm at 37℃ to dissolve. After addition of RNase A，Buffer P1 is stable for 6 months when stored at 2-8°C.

Purchase Guide

Name	CAT NO	Features	Sample amount	Elution volume	Yield
HiPure Plasmid Mini Kit	P1001	Classic, Regular application	1-5ml LB	30-50μl	5–35µg/5ml
HiPure Plasmid Mini Kit II	P1002	Classic, Regular application	5-15ml LB	75-100μl	20-80µg/15ml
HiPure Plasmid Plus 96 Kit	P1006	Classic, Regular application	1-1.5ml LB	70-150μl	1-15μg/1ml
HiPure Fastfilter Plasmid Midi Kit	P1013	Fast	30-50ml LB	0.3-0.8ml	50–250µg/50ml
HiPure Fastfilter Plasmid Maxi Kit	P1014	Fast	100-200ml LB	0.5-1.5ml	0.4–1mg/200ml
Low endotoxin/Endotoxin-free Plasmid
HiPure Plasmid EF Maxi Kit	P1156	Classic method, General for all kinds of vectors	100-200ml LB	≥0.7ml	200–1500µg
HiPure Plasmid EF Mini Kit	P1154	Recommend for low copy vector, Thoroughly remove RNA	5-15ml LB	≥60μl	10–80µg
HiPure Plasmid EF 96 Kit	P1157	Recommend for low copy vector, Thoroughly remove RNA	1-5ml LBx96	≥75μl	30µg
HiPure Plasmid EF Midi Kit	P1231	Recommend for High copy vector, Low elution volume, High concentration	25-50ml LB	≥100μl	10-500μg
HiPure Plasmid EF Mega Kit	P1116	Recommend for High copy vector(>3μg/ml)	500ml LB	≥2ml	1-10mg

For any technical problems or customized products, please contact us.

F&Q about Endotoxin-free Plasmid Extraction Kit -- P1156 ←click here

Articles

Download

P1002 HiPure Plasmid Mini Kit II.pdf Preview Down

CAT NO	PRODUCT NAME	SIZE	PRICE
P100202	HiPure Plasmid Mini Kit II	50 preps	$60.00
P100203	HiPure Plasmid Mini Kit II	250 preps	$273.00
