| CAT NO | PRODUCT NAME | SIZE | PRICE |
| D500101 | MagPure Gel Pure DNA Kit | 50 preps | $75.00 |
| D500102 | MagPure Gel Pure DNA Kit | 500 preps | $348.00 |
|
D500103 |
MagPure Gel Pure DNA Kit |
5000 preps |
$3,232.00 |
A highly efficient, easily automated agarose gel or PCR purification system that delivers superior quality DNA with no salt carryover. Requiring no centrifugation or filtration. The Kit can be easily used in manual and automated 96 or 384-well formats.
Specifications
| Features | Specifications |
| Main Functions | Recover DNA fragments >100bp from agarose gel(<0.3g), purification of DNA from PCR, enzymatic reaction solution or crude gDNA |
| Applications | PCR, NGS, chip analysis, etc. |
| Purification technology | Magnetic beads technology |
| Process method | Manual or automatic |
| Sample type | Agarose Gel, PCR products, enzymatic reaction solution |
|
Sample amount |
Agarose Gel: <0.3g, PCR products: ≤50µl |
| Recovery |
80% |
| Elution volume | ≥30μl |
| Time per run | ≤30 minutes |
The Kit method contains magnetic particles in an optimized binding buffer to selectively bind DNA fragments (>100bp) and larger to paramagnetic beads. Excess primers, nucleotides, salts, and enzymes can be removed using a simple washing procedure.
Advantages

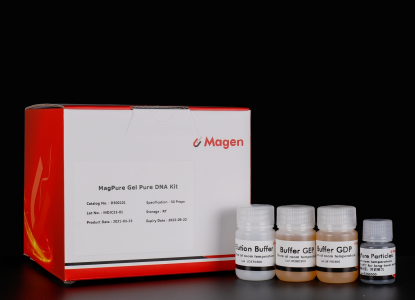

Kit Contents
| Contents |
D500101 |
D500102 | D500103 |
| Purification Times |
50 Preps |
500 Preps |
5000 Preps |
| Buffer GDP |
30 ml |
250 ml |
3 x 900 ml |
| MagPure Particles |
1.6 ml |
15 ml |
3 x 50 ml |
|
Buffer DW1 |
20 ml |
180 ml |
2 x 800 ml |
| Elution Buffer(10mmTris, pH8.5) |
10 ml |
60 ml |
500 ml |
Storage and Stability
MagPure Particles should be stored at 2-8°C upon arrival. However, short-term storage (up to 24 weeks) at room temperature (15-25°C) does not affect their performance. The remaining kit components can be stored at room temperature (15-25°C) and are stable for at least 18 months under these conditions.

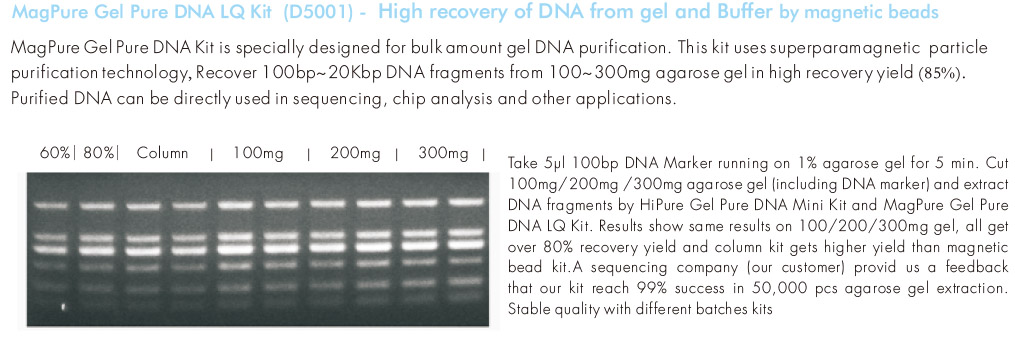

Experiment Data
