Introduction

The HiPure Minipreps system provides a fast, simple, and cost-effective plasmid DNA miniprep method for routine molecular biology laboratory applications. HiPure Miniprep Kits use silica membrane technology to eliminate the cumbersome steps associated with loose resins or slurries. Plasmid DNA purified with Mini Kits is immediately ready for use. Phenol extraction and ethanol precipitation are not required, and high quality plasmid DNA is eluted in a small volume of Tris buffer or water.

Details

Specifications

Features	Specifications
Main Functions	Isolation up to 30μg endotoxin-free plasmid DNA from 1-5ml bacterial culture using 96-well bind plate
Applications	Cell transfection, animal injection, etc.
Purification method	96 well plate
Purification technology	Silica technology
Process method	Manual (centrifugation or vacuum)
Sample type	Low copy plasmid vector
Sample amount	1-5ml LB（x96）
Yield	30μg
Elution volume	≥75μl
Time per run	≤60 minutes
Liquid carrying volume per column	800μl
Binding yield of column	70μg

Principle

The HiPure Plasmid procedure is based on alkaline lysis of bacterial cells followed by adsorption of DNA onto silica in the presence of high salt. The unique silica membrane used in the kit completely replaces glass or silica slurries for plasmid DNA minipreps. The procedure consists of 3 basic steps: Preparation and clearing of a bacterial lysate by alkaline method，then transfer the supernatant to column to bind DNA. After washing proteins and other impurities, nucleic acid was finally eluted with low-salt buffer (10mm Tris, pH9.0, 0.5mm EDTA).

Advantages

1. High throughput: processing 96 samples at once;
2. High yield: The purified plasmid yield can reach up to 30μg, which is greater than the yield of the magnetic bead method kit;
3. Detoxification: endotoxin content <0.1EU/μg;
4. Fast: The entire extraction can be completed in 60 minutes without the need for time-consuming alcohol precipitation;

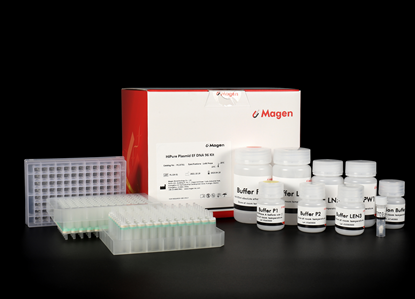

Kit Contents

Contents	P115701	P115702	P115703
Purification Times	1 x 96 Preps	4 x 96 Preps	20 x 96 Preps
RNase A	10 mg	20 mg	100 mg
Buffer P1	30 ml	120 ml	550 ml
Buffer P2	30 ml	120 ml	550 ml
Buffer LEN3	15 ml	60 ml	300 ml
Buffer LN4	80 ml	270 ml	2 x 700 ml
Buffer LN5	40 ml	220 ml	1100 ml
Buffer PW1	40 ml	220 ml	1100 ml
Buffer PW2	25 ml	100 ml	2 x 200 ml
Elution Buffer	30 ml	60 ml	250 ml
Lysate Clear Plate	1	4	20
HiPure DNA Plate	1	4	20
1.6ml Collection Plate	2	8	40
0.5ml Collection Plate	1	4	20

Storage and Stability

The kit components can be stored dry at room temperature (15-25°C) and are stable for at least 18 months under these conditions. If any precipitates form in the buffers, warm at 37℃ to dissolve. After addition of RNase A，Buffer P1 is stable for 6 months when stored at 2-8°C.

Purchase Guide

Name	CAT NO	Features	Sample amount	Elution volume	Yield
HiPure Plasmid Mini Kit	P1001	Classic, Regular application	1-5ml LB	30-50μl	5–35µg/5ml
HiPure Plasmid Mini Kit II	P1002	Classic, Regular application	5-15ml LB	75-100μl	20-80µg/15ml
HiPure Plasmid Plus 96 Kit	P1006	Classic, Regular application	1-1.5ml LB	70-150μl	1-15μg/1ml
HiPure Fastfilter Plasmid Midi Kit	P1013	Fast	30-50ml LB	0.3-0.8ml	50–250µg/50ml
HiPure Fastfilter Plasmid Maxi Kit	P1014	Fast	100-200ml LB	0.5-1.5ml	0.4–1mg/200ml
Low endotoxin/Endotoxin-free Plasmid
HiPure Plasmid EF Maxi Kit	P1156	Classic method, General for all kinds of vectors	100-200ml LB	≥0.7ml	200–1500µg
HiPure Plasmid EF Mini Kit	P1154	Recommend for low copy vector, Thoroughly remove RNA	5-15ml LB	≥60μl	10–80µg
HiPure Plasmid EF 96 Kit	P1157	Recommend for low copy vector, Thoroughly remove RNA	1-5ml LBx96	≥75μl	30µg
HiPure Plasmid EF Midi Kit	P1231	Recommend for High copy vector, Low elution volume, High concentration	25-50ml LB	≥100μl	10-500μg
HiPure Plasmid EF Mega Kit	P1116	Recommend for High copy vector(>3μg/ml)	500ml LB	≥2ml	1-10mg

For any technical problems or customized products, please contact us.

F&Q about Endotoxin-free Plasmid Extraction Kit -- P1156 ←click here

Articles

Download

P1157 HiPure Plasmid EF 96 Kit.pdf Preview Down

CAT NO	PRODUCT NAME	SIZE	PRICE
P115701	HiPure Plasmid EF 96 Kit	1 x 96 preps	$224.00
P115702	HiPure Plasmid EF 96 Kit	4 x 96 preps	$646.00
P115703	HiPure Plasmid EF 96 Kit	20 x 96 preps	$2735.00
