Introduction

HiPure Gel Pure DNA Kit uses proprietary chemistry and HiPure technology to recover DNA fragments between 80bp-15kbp with yields exceeding 80%. DNA is suitable for ligations, PCR, sequencing, restriction digestion, or various labeling reactions. In addition, this kit can be also used to recover DNA directly from enzymatic reactions such as PCR and enzyme digestion reactions.

Note: This kit can only recover 200mg of gel at most. If it is larger than 200mg, the column may be blocked. This column can only recover 5μg of DNA at most.

Details

Specifications

Features	Specifications
Main Functions	Recover DNA fragments >100bp from agarose gel(<0.2g), purification of DNA from PCR or enzymatic reaction solution solution
Applications	PCR, NGS, labeling, ligation and enzyme digestion, etc.
Purification method	Micro spin column
Purification technology	Silica technology
Process method	Manual (centrifugation or vacuum)
Sample type	Agarose gel, PCR products, enzyme products
Sample amount	Agarose gel: ≤200mg DNA products: ≤300µl (≤5µg)
Recovery	100-5000bp：85%, 5-10kb：60-70%
Elution volume	≥10μl
Time per run	≤30 minutes（1-24 samples）
Liquid carrying volume per column	800µl
Binding yield of column	20µg

Principle

The HiPure system uses a simple bind-wash-elute procedure. Gel slices are dissolved in a buffer containing a pH indicator, allowing easy determination of the optimal pH for DNA binding, and the mixture is applied to the column. Nucleic acids adsorb to the silica-gel membrane in the high-salt conditions provided by the buffer. Impurities are washed away and pure DNA is eluted with a small volume of low-salt buffer provided or water, ready to use in subsequent applications.

Advantages

High recovery efficiency - up to 80% DNA recovery
Low elution volume - elution volume can be as low as 10μl
General - recover DNA fromgel or enzyme-driven reaction solutions such as PCR
Fast – isolation can be completed in 10-15 minutes by column gel method

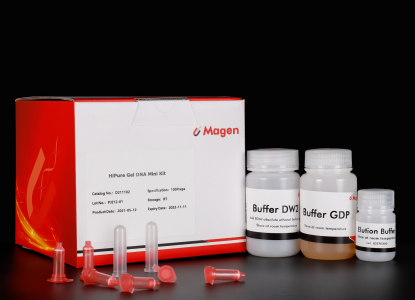

Kit Contents

Contents	D211002	D211003
Purification Times	100 Preps	250 Preps
Buffer GDP	60 ml	125 ml
Buffer DW1	40 ml	90 ml
Buffer DW2	20 ml	50 ml
Elution Buffer	20 ml	30 ml
HiPure DNA Micro Columns	100	250
2 ml Collection Tubes	100	250

Storage and Stability

The Kit should be stored dry at room temperature (15-25°C) and are stable for at least 18 months under these conditions. If any precipitates form in the buffers, warm at 37℃ to dissolve.

Articles

Download

D2110 HiPure Gel DNA Micro Kit.pdf Preview Down

CAT NO	PRODUCT NAME	SIZE	PRICE
D211002	HiPure Gel DNA Micro Kit	100 preps	$70.00
D211003	HiPure Gel DNA Micro Kit	250 preps	$165.00
