Introduction

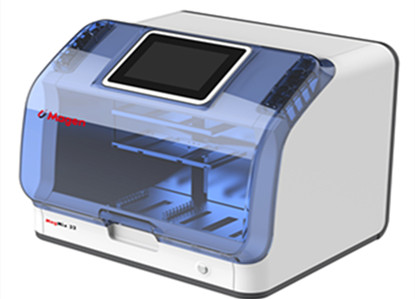

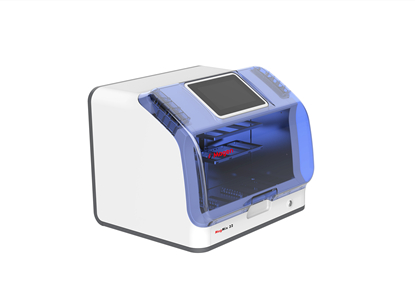

MagMix Automatic Nucleic Acid Extraction System is the equipment for DNA/RNA extraction from biological samples. The system operates automatically by moving magnetic rods and disposable tips, to complete the process of sample lysis, nucleic acid adsorption, wash and elution. It can process 1-24 samples at one time, meeting different sample amount requirement. It can be used with single reagent tube consumable to prevent the waste of consumables.

The system is compatible with different reagents for DNA/RNA extraction from animal, plant, food, pathogen, and clinical samples. It is applicable for use in multiple fields, for example, clinical test, scientific research, genomic analysis, centers for disease control, food safety and forensic identification.

Details

Specifications

Features	Specifications
Principle	Extraction by magnetic beads
Throughput	1-24 samples and single sample
Process Volume	50-5000 μl
Sample Volume	≤2000 μl

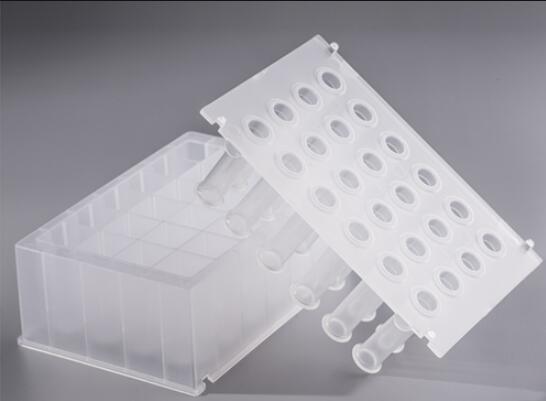

Plate types	24 deep well plate
Magnetic Rods	24 rods
Purification accuracy	102 copies/ml samples positive rate>98%
Stability	Cv<1%
Heating function	Heating holders are provided at 1st and 6th lines (can be customized)
Mix by vortex	11 different mixing modes (1 - 10 speed levels)
Magnetic bead size	>100 nm
Reagents	Open platform for magnetic bead methods
User interface	7 -inch color touch screen
Storage capacity	Up to 1000 programs
Protocol management	Create, edit, delete, copy, output by USB
UV light	Yes
Exhaust Mode	Induced fan
Running time	1-60 minutes（Depends on program setting)
Weight	55 KG
Dimensions	600mm X 500mm X 500mm

Principle

By controlling the magnetic rods, the system can transfer the magnetic beads and disposable tips to mix the solutions. Samples are lysed, and then the nucleic acids are adsorbed to magnetic beads, then washed and eluted to produce the high-quality nucleic acids.

The magnetic bead method has the advantage of high automation, efficient extraction, stable results and easy operation. It is more flexible operation by using single tube consumables.

Advantages

Automated & High throughput - full automation, up to 24 samples can be processed at one time, 4-5 times more efficient than manual method.
High efficiency - the optimization of full magnetic rod and amplitude adjustment technology can easily deal with various small magnetic beads to achieve no hanging or residue.
Standard - multiple running programs can be edited as needed and a large storage core is provided to ensure the unity of experimental conditions.
Intelligent - flexible throughput can meet different needs of extraction while unique UL design of control panel can display the operating parameters at one time, easy to understand and operate.
Precise temperature - fully contact between the deep well plates and heating modules, leads to a precise and stable temperature within each well, resulting in a high efficiency of sample lysis and nucleic acid elution.
Safe - disposable tips and built-in UV radiation lower the safety risk of operation, and avoid the aerosol contamination between each run.

Purchase Guide

Item No.	Consumables	Extraction mode	Plate/Strip amount	Hole/Plate position	Sample amount	Sample volume	Process Volume
MagMix 16	96 well plate	Single plate, 16 samples/plate	1 plate	6 hole position	16	<800μl	1ml
MagMix 32	96 well plate	Single plate, 16 samples/plate	2 plates	6 hole position	32	<1ml	1ml
MagMix 48	96 well plate	Single plate, 16 samples/plate	3 plates	6 hole position	48	<500μl	1ml
MagMix 96	96 well plate	Multiple plates, 96 samples/plate	6 plates	6 hole position	96	<500μl	1ml

MagRotex 8	Reagent strip	Reagent strip	8 strips	7 hole position	8	0.2-1ml	4ml
MagRotex 32	Reagent strip	Reagent strip	32 strips	7 hole position	32	0.2-4ml	4ml
MagMix 32B	48 well plate	Single plate, 8 samples/plate	4 plates	6 hole position	32	<750μl	1.5ml
MagMix 48B	48 well plate	Multiple plates, 48 samples/plate	6 plates	6 hole position	48	<750μl	1.5ml

MagMix 12	24 well plate	Single plate, 4 samples/plate	3 plates	6 hole position	12	<2ml	5ml
MagMix 24	24 well plate	Multiple plates, 24 samples/plate	6 plates	6 hole position	24	<2ml	5ml
MagRotex 24	Reagent strip	Reagent strip	24 strips	6 hole position	24	2ml-4ml	7ml
MagRotex 24 Plus	Reagent strip	Reagent strip	24 strips	9 hole position	24	2ml-9ml	10ml

CAT NO	PRODUCT NAME	SIZE	PRICE
MagMix24	MagMix 24 Nucleic acid Extractor	24channels	Inquiry
