MagRotex 8 Nucleic acid Extractor

MagRotex8
CAT NO PRODUCT NAME SIZE PRICE
MagRotex8 MagRotex 8 Nucleic acid Extractor 8channels Inquiry

Introduction

MagRotex 8 adopts innovative rotating magnetic bead resuspension technology and single sample extraction consumables design, which can not only meet the require of large sample size (the initial sample volume can reach 1000μl), but also select the quantity of consumables according to the number of samples, ensure the independence of sample processing process, avoid consumables waste and realize zero loss of consumables and reagents. Nucleic acid extraction and purification of 1-8 different samples can be completed quickly at one time. The user can start the experiment by simple operation through the large-size touch screen of the instrument. After the experiment, the extracted nucleic acid is stored in an independent elution tube, which can be taken out, capped, cryopreserved or used for subsequent detection. Megan has developed a large number of kits for MagRotex 8. The products include plasmid extraction, gel/product DNA purification, small amount of DNA extraction from blood/tissue, small amount of DNA extraction from environment, extraction of plant DNA, and extraction of total RNA, which basically include all kinds of biological samples in scientific research projects.

Details

Specifications

Features Specifications
Principle Extraction by magnetic beads
Throughput 1-8 samples
Process Volume
30-4000 μl
Sample Volume 0.2-1 ml
Magnetic bead recovery >99%
Stability Cv<3%
Heating temperature
Room temperature - 80 ℃
Ultraviolet disinfection
Supporting and time adjustable
Ventilation system
Outside type
Running time
1-60 minutes(Depends on program setting)
Weight 25 KG
Dimensions
350mm X 380mm X 280mm


Principle

By controlling the magnetic rods, the system can transfer the magnetic beads and disposable tips to mix the solutions. Samples are lysed, and then the nucleic acids are adsorbed to magnetic beads, then washed and eluted to produce the high-quality nucleic acids.

The magnetic bead method has the advantage of high automation, efficient extraction, stable results and easy operation. It is more flexible operation by using single tube consumables.

Features and Advantages

  • Large volume - large volume sample processing capacity, process 0.2-1ml samples
  • Reagent strip design - a single sample can be extracted without wasting consumables
  • Simple operation - precast kit design, automatic extraction can be carried out immediately by adding samples
  • Quick extraction - only 30-60 minutes to complete the extraction
  • Flexible elution volume - as low as 50μL elution volume, which can ensure the highest concentration of nucleic acid
  • Abundant matching reagents - DNA/RNA extraction of biological samples such as plasmid extraction, animals, plants and environment
  • Rotary suspension - innovative rotary magnetic bead resuspension technology is adopted to avoid aerosol pollution caused by blowing or shaking and ensure the integrity of nucleic acid structure


Machine & Consumables



Instrument operation procedure

Purchase Guide

Item No. Consumables

Extraction mode

Plate/Strip amount

Hole/Plate position

Sample amount

Sample volume

Process Volume

MagMix 16
96 well plate Single plate, 16 samples/plate

1 plate

6 hole position 16
<800μl 1ml
MagMix 32
96 well plate Single plate, 16 samples/plate

2 plates

6 hole position 32
<1ml 1ml
MagMix 48
96 well plate Single plate, 16 samples/plate

3 plates

6 hole position 48
<500μl 1ml
MagMix 96
96 well plate Multiple plates, 96 samples/plate

6 plates

6 hole position 96
<500μl 1ml








MagRotex 8

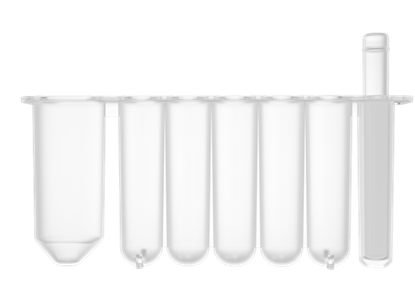

Reagent strip Reagent strip

8 strips

7 hole position 8
0.2-1ml 4ml
MagRotex 32
Reagent strip Reagent strip

32 strips

7 hole position 32
0.2-4ml 4ml
MagMix 32B
48 well plate Single plate, 8 samples/plate

4 plates

6 hole position 32
<750μl 1.5ml
MagMix 48B
48 well plate Multiple plates, 48 samples/plate

6 plates

6 hole position 48
<750μl 1.5ml








MagMix 12
24 well plate Single plate, 4 samples/plate

3 plates

6 hole position 12
<2ml 5ml
MagMix 24
24 well plate Multiple plates, 24 samples/plate

6 plates

6 hole position 24
<2ml 5ml
MagRotex 24
Reagent strip Reagent strip

24 strips

6 hole position 24 2ml-4ml 7ml
MagRotex 24 Plus
Reagent strip Reagent strip

24 strips

9 hole position 24
2ml-9ml 10ml
