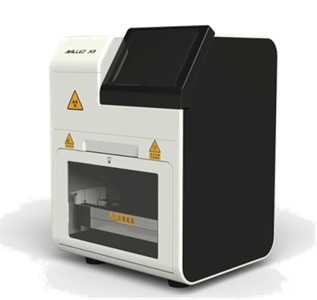

MagRotex 24 LV Nucleic acid Extractor

MagRotex24
CAT NO PRODUCT NAME SIZE PRICE
MagRotex24 MagRotex 24 LV Nucleic acid Extractor 24channels Inquiry

Introduction

MagRotex 24 adopts innovative rotating magnetic bead resuspension technology and single sample extraction consumables design, which can not only meet the require of large sample size (the initial sample volume can reach 4ml), but also select the quantity of consumables according to the number of samples, ensure the independence of sample processing process, avoid consumables waste and realize zero loss of consumables and reagents. Nucleic acid extraction and purification of 1-24 different samples can be completed quickly at one time. The user can start the experiment by simple operation through the large-size touch screen of the instrument. After the experiment, the extracted nucleic acid is stored in an independent elution tube, which can be taken out, capped, cryopreserved or used for subsequent detection. Megan has developed a large number of kits for MagRotex 24. The products include plasmid extraction, gel/product DNA purification, small amount of DNA extraction from blood/tissue, small amount of DNA extraction from environment, extraction of plant DNA, and extraction of total RNA, which basically include all kinds of biological samples in scientific research projects.

Details


Specifications

Features Specifications
Extraction mode Rotate and mix evenly, single sample can be extracted independently
Throughput 1-24 samples
Process Volume
60-7000 μl
Sample Volume 2-4 ml
Magnetic bead recovery
>98%
Stability
Cv<1%
Heating temperature
Room temperature - 99 ℃
Ultraviolet disinfection
Support
Precast kit
Support
Running time
10-60 minutes(Depends by reagent requirements
Weight 50 KG
Dimensions
446mm X 384mm X 633mm


Principle

By controlling the magnetic rods, the system can transfer the magnetic beads and disposable tips to mix the solutions. Samples are lysed, and then the nucleic acids are adsorbed to magnetic beads, then washed and eluted to produce the high-quality nucleic acids.

The magnetic bead method has the advantage of high automation, efficient extraction, stable results and easy operation. It is more flexible operation by using single tube consumables.

Features and Advantages

  • Flexible sample volume - 2-4ml sample volume can be processed

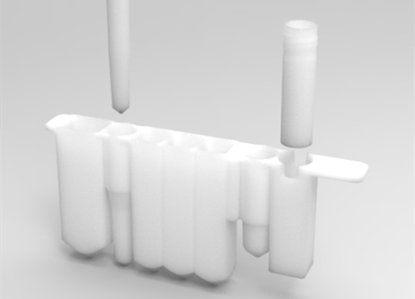

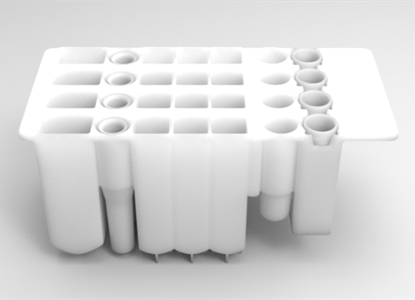

  • Independent consumables design - strip consumables, no cross pollution and no waste of consumables
  • Rotary suspension - innovative rotary magnetic bead resuspension technology is adopted to avoid aerosol pollution caused by blowing or shaking and ensure the integrity of nucleic acid structure
  • Independent elution hole - a standard 2ml centrifuge tube is used to collect nucleic acid products, which is more convenient without turning the tube for storage

Purchase Guide

Item No. Consumables

Extraction mode

Plate/Strip amount

Hole/Plate position

Sample amount

Sample volume

Process Volume

MagMix 16
96 well plate Single plate, 16 samples/plate

1 plate

6 hole position 16
<800μl 1ml
MagMix 32
96 well plate Single plate, 16 samples/plate

2 plates

6 hole position 32
<1ml 1ml
MagMix 48
96 well plate Single plate, 16 samples/plate

3 plates

6 hole position 48
<500μl 1ml
MagMix 96
96 well plate Multiple plates, 96 samples/plate

6 plates

6 hole position 96
<500μl 1ml








MagRotex 8
Reagent strip Reagent strip

8 strips

7 hole position 8
0.2-1ml 4ml
MagRotex 32
Reagent strip Reagent strip

32 strips

7 hole position 32
0.2-4ml 4ml
MagMix 32B
48 well plate Single plate, 8 samples/plate

4 plates

6 hole position 32
<750μl 1.5ml
MagMix 48B
48 well plate Multiple plates, 48 samples/plate

6 plates

6 hole position 48
<750μl 1.5ml








MagMix 12
24 well plate Single plate, 4 samples/plate

3 plates

6 hole position 12
<2ml 5ml
MagMix 24
24 well plate Multiple plates, 24 samples/plate

6 plates

6 hole position 24
<2ml 5ml
MagRotex 24
Reagent strip Reagent strip

24 strips

6 hole position 24 2ml-4ml 7ml
MagRotex 24 Plus
Reagent strip Reagent strip

24 strips

9 hole position 24
2ml-9ml 10ml
